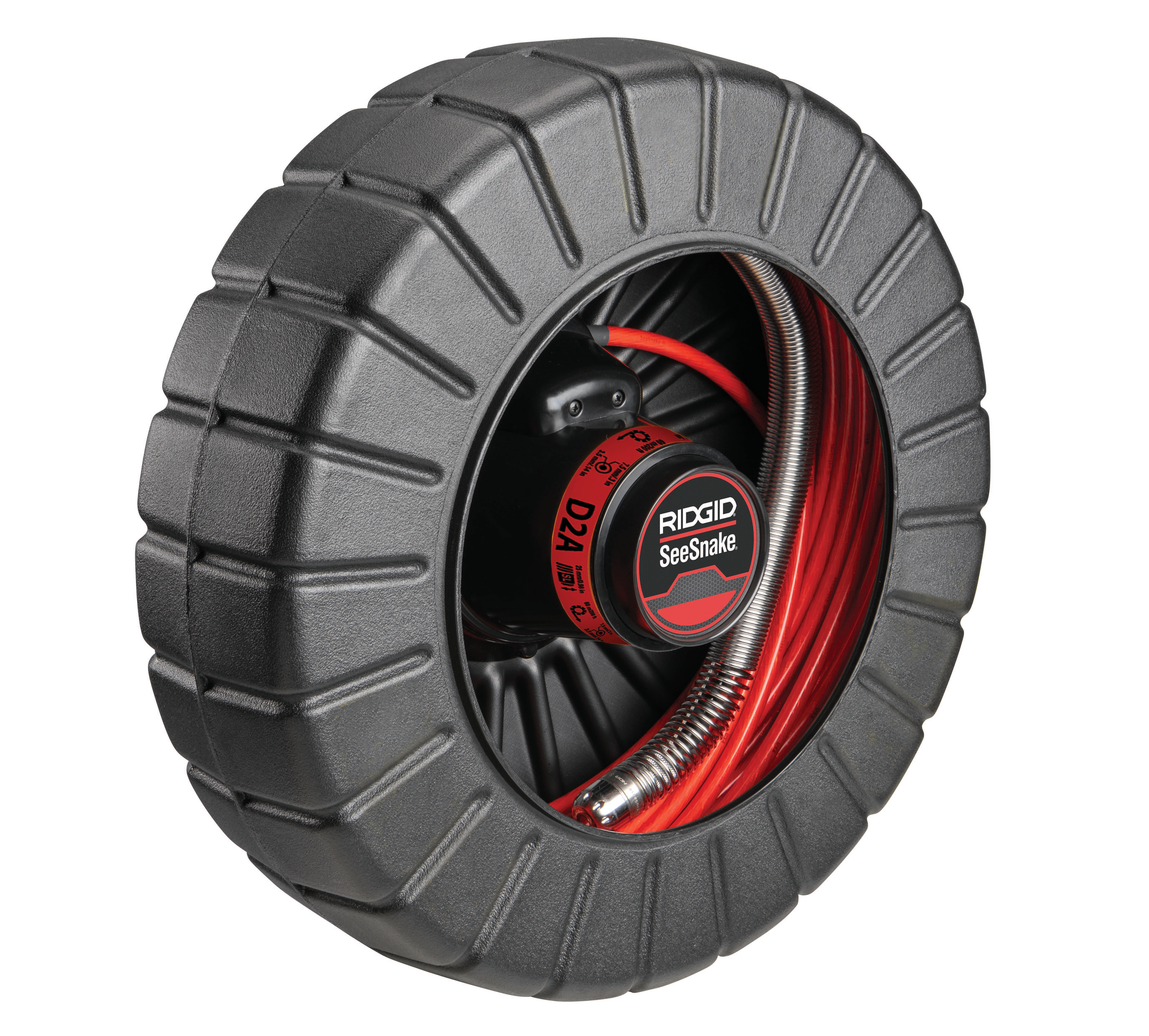

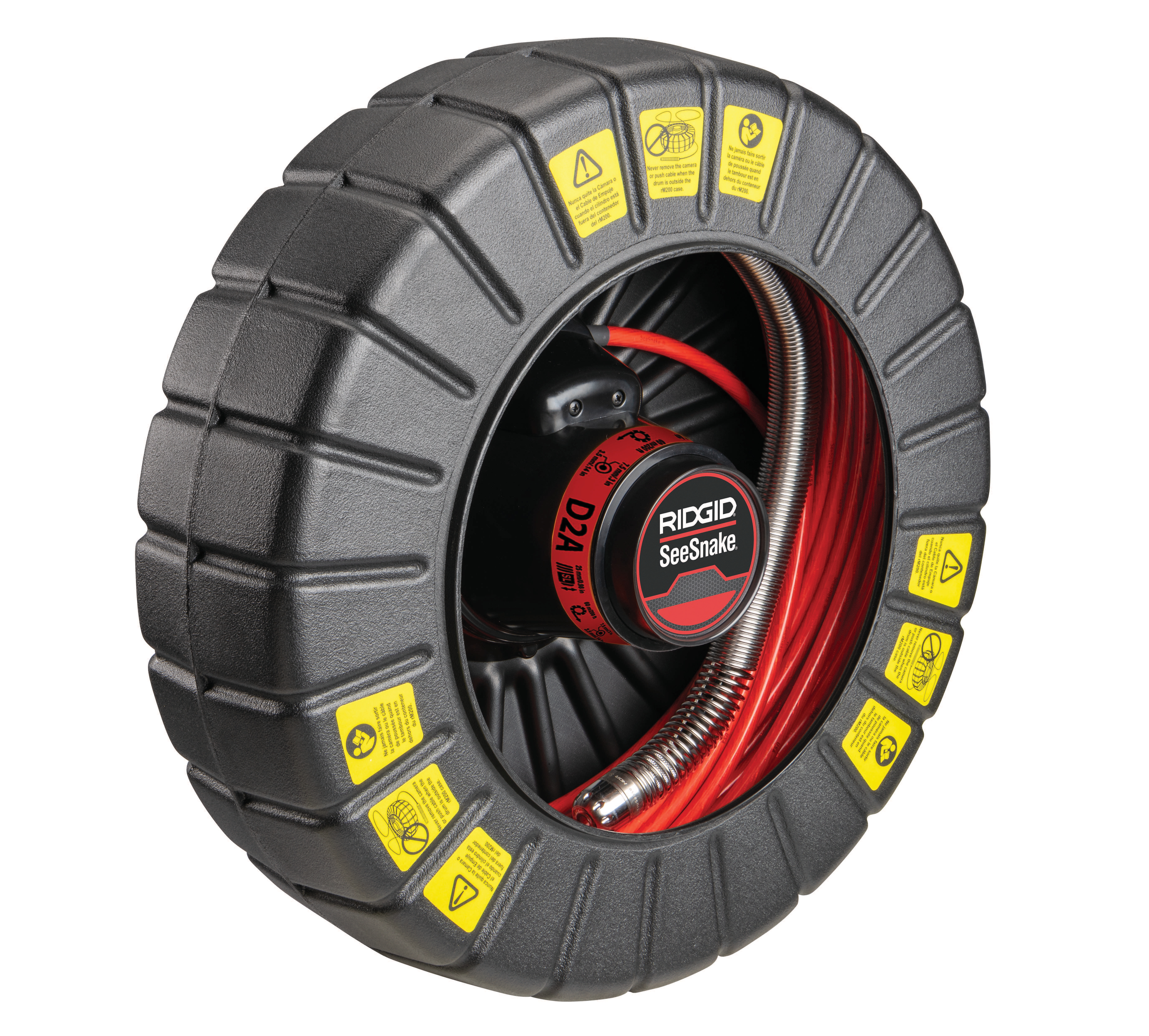

RIDGID 70758 SeeSnake D2A Drum (200' / 61 m) with Self-Leveling Camera & TruSense
Product Images
Primary
Images provided by RIDGID
Description
The RIDGID 70758 SeeSnake D2A Drum is a 200 ft. (61 m) drum subassembly that fits the SeeSnake rM200 series of camera reels. It carries a 0.3 in. (7.5 mm) diameter push cable and a 1 in. (25 mm) self-leveling camera head powered by TruSense technology — High Dynamic Range (HDR) image sensor for clear in-pipe imaging plus a TiltSense inclinometer for camera-angle feedback on SeeSnake CSx series Wi-Fi monitors.
Drum diameter is 17 in. (432 mm). Best suited for inspecting lines from 1.5 in. to 4 in. (40-110 mm), with overall line capacity rated to 8 in. Camera resolution 640 × 480.
Features
- 1 in. self-leveling camera head with TruSense keeps images upright through every bend
- 200 ft (61 m) of 0.3 in. push cable for tight residential drain lines
- TruSense HDR sensor for crisp imaging in difficult in-pipe lighting
- TiltSense inclinometer feeds camera-angle data to SeeSnake CSx Wi-Fi monitors
- Drop-in compatibility with SeeSnake rM200 series camera reels
Technical Specifications
- Push Cable Length
- 200 ft (61 m)
- Push Cable Diameter
- 0.3 in (7.5 mm)
- Camera Head Diameter
- 1 in (25 mm), self-leveling
- Camera Resolution
- 640 × 480
- Drum Diameter
- 17 in (432 mm)
- Pipe Size Range
- 1.5" - 8" (best 1.5" - 4")
- Compatibility
- SeeSnake rM200 series camera reels
General Information
- Item Number
- 70758
- Categories
- Power Tools
- Manufacturer
- RIDGE TOOL COMPANY
- Vendor Item #
- 70758
- Manufacturer Code
- RID
- UPC
- 095691707581
- Alpha Code
- DRUM CAMER
- Class
- 123
- Availability
- Call for availability (0 on hand)
Dimensions & Weight
- Weight
- 0.00 lbs
- Dimensions
- 21.00" L × 13.60" W × 24.00" H
